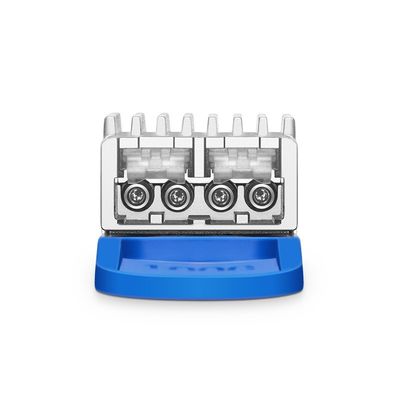

100G DWDM QSFP28 PAM4 80km (Require EDFA and TDCM) DOM Duplex CS SMF Transceiver Module
$2,000.00
Place of Origin: China
Brand Name: innoOptics
Certification: CE FCC ROHS UL
Model Number: iQSFP28-100G-DWDMZR4
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD20-50 per pcs
Packaging Details: Package with Anti-Static box
Delivery Time: 2-6 working days after payment of order
Payment Terms: T/T
Supply Ability: 3000pcs per month
Description
High Light:
100g dwdm transceiver
,
100g dwdm qsfp28
,
dwdm qsfp28
Package:
QSFP28
Reach:
80km
Type:
Optical Transceiver
Operating Temp.:
0 To 70°C (32 To 158°F)
Protocols:
100G Ethernet
Compatible:
Mellanox, Cisco, Arista, Juniper, Dell, Etc.
Warranty:
3 Years
RoHS:
Compatible
|
PN:
|
IQSFP28-100G-DWDMZR4
|
Data Rate:
|
100GBase
|
PN:
IQSFP28-100G-DWDMZR4
Data Rate:
100GBase
Package:
QSFP28
Reach:
80km
Type:
Optical Transceiver
Operating Temp.:
0 To 70°C (32 To 158°F)
Protocols:
100G Ethernet
Compatible:
Mellanox, Cisco, Arista, Juniper, Dell, Etc.
Warranty:
3 Years
RoHS:
Compatible
100G DWDM QSFP28 PAM4 80km (Require EDFA and TDCM) DOM Duplex CS SMF Transceiver Module
100G DWDM QSFP28 PAM4 80km (Require EDFA and TDCM) DOM Duplex CS SMF Transceiver Module
The 100G DWDM PAM4 transceiver supports to multiple 100G links up to 80km using TDCM and EDFA over single-mode fiber (SMF) via an CS connector. PAM4 modulation technology allows for DWDM connectivity in a QSFP28 form factor on the 100G ITU DWDM wavelength grid. This transceiver is compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8636 and SFF-8024 standards. This transceiver is ideal for DCI, 100G Ethernet Metro-Access over DWDM, Campus and Enterprise Links, etc.
Product Highlights
- Built-in Chip, Max. Power Consumption 5W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- DWDM for Multiple Applications over One Duplex Fiber
- Reach up to 80km (EDFA and TDCM Required)
- High-Speed Electrical Interface Compliant to IEEE 802.3bm
- Hot Pluggable QSFP28 MSA Compliant
- Class 1 FDA Laser Safety Compliant
- Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- RoHS compatible
Additional information
| Compatibility | Cisco, Juniper, Brocade, NVIDIA, Arista Networks, NETGEAR, HPE, HPE ARuba, Mellanox, Hirschmann, Huawei, H3C, Dell, Lenovo, ZYXEL, D-Link, TP-Link, Alcatel-Lucent Bell, AVAGO, Broadcom, Ericsson, Extreme, F5, Finisar, Intel, IBM, Mikrotik, NOKIA, Qlogic, Ruijie, ZTE |
|---|
