100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 3M 100G QSFP28 DAC
$83.82
Place of Origin: China
Brand Name: innoOptics
Certification: CE FCC ROHS UL
Model Number: iQSFP28-100G-DAC3M-B4
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Unit Price: USD20-50 per pcs
Packaging Details: Package with Anti-static bag
Delivery Time: 2-6 working days after payment of order
Payment Terms: T/T
Supply Ability: 30000pcs per month
Description
High Light:
100G QSFP28 to 4x25G DAC
,
QSFP28-100G-DAC3M-B4
,
sfp 100g dac 3m
|
PN:
|
IQSFP28-100G-DAC3M-B4
|
Data Rate:
|
100GBase
|
IOS-D#80113-3, iQSFP28-100G-DAC3M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 3M
IOS-D#80113-3
100GBase QSFP28 to 4x25G SFP28 DAC (Direct Attach Cable) Cables (Passive) 3M

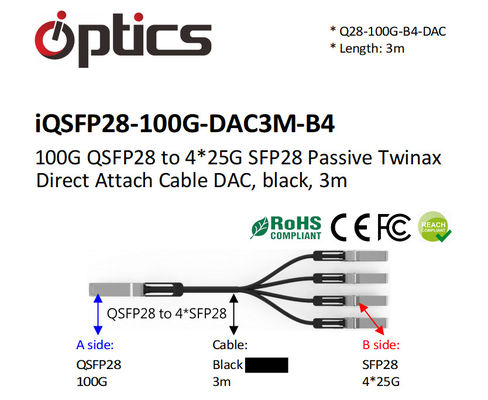

This 100G breakout Passive DAC cable is equiped with QSFP28 package at one side, and 4 of 25G SFP28 package at the other side. The max length for 100Gbase QSFP28 to 4x25G SFP28 DAC is 5-meter. The PN for 3m is iQSFP28-100G-DAC3M-B4, with IOS-D#80113-3.
Product Features:
- Max. Power Consumption 0.5W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Minimum Bend Radius 30mm for Flexible Routing
- Supports 100G to 4x 25G Ethernet Interoperability
- Simplifies the Patching and Offers a Cost-effective Way for Short Links
- Hot Pluggable QSFP28 and SFP28 MSA Compliant
- Cable length 3m
- Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
- RoHS Compliant
Applications:
- 10G/40G /100G Ethernet
- Infiniband SDR, DDR, QDR,FDR,EDR,HDR
- SWITCH
- Router
- Concentrator
- Data center, cloud server
Ordering Information:
- iQSFP28-100G-DAC0.5M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M
- iQSFP28-100G-DAC1M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 1M
- iQSFP28-100G-DAC1.5M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M
- iQSFP28-100G-DAC2M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 2M
- iQSFP28-100G-DAC2.5M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M
- iQSFP28-100G-DAC3M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 3M
- iQSFP28-100G-DAC3.5M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 3.5M
- iQSFP28-100G-DAC4M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 4M
- iQSFP28-100G-DAC4.5M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 4.5M
- iQSFP28-100G-DAC5M-B4, 100G QSFP28 to 4x25G Breakout DAC(Direct Attach Cable) Cables (Passive) 5M
Compatible:
- 3m (9ft) Cisco QSFP-4SFP25G-CU3M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) Juniper Networks JNP-100G-4X25G-3M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) Arista Networks CAB-Q-4S-100G-3M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) Brocade 100G-Q28-S28-C-0301 Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) HW DAC-Q28-S28-3M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) H3C QSFP28-4SFP28-CU-3M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) Dell (DE) DAC-Q28-4SFP28-25G-3M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
- 3m (9ft) Extreme Networks 10423 Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable
Additional information
| Compatibility | Cisco, Juniper, Brocade, NVIDIA, Arista Networks, NETGEAR, HPE, HPE ARuba, Mellanox, Hirschmann, Huawei, H3C, Dell, Lenovo, ZYXEL, D-Link, TP-Link, Alcatel-Lucent Bell, AVAGO, Broadcom, Ericsson, Extreme, F5, Finisar, Intel, IBM, Mikrotik, NOKIA, Qlogic, Ruijie, ZTE |
|---|
